Inspur 1 U Rack Mounted Rugged Server

Products Status Stock
Type Rack
Max Memory Capacity 4GB
Max Processors 2
Processor Main Frequency 2.33GHz
Processor Type Intel Core 2 Duo Xeon 2.33GHz
Brand Name Inspur
Model Number JGJJ5212
Place of Origin Shandong, China (Mainland)
Chipset Intel 5000V
Hard Disk >146GB*2
Power AC 110/220V @ 50-60Hz or DC 18-36V
Dimension 424mm*85mm*492mm (W*H*D)
Weight ≤17Kg
Operating Temp. -20?~+55?
Storage Temp. -50?~+65?
Shock resistance Peak acceleration: 150m/s2; pulse width: 11ms
Humidity 95%±3%, 40?, non-condensing
Vibration 5.0~5.5Hz, displacement (double-amplitude) 25.4mm ,1.5g (5.5~200Hz)

Detailed Product Description


rack rugged PCs,stainless steel rack, modular design, I/O aero jack, vibration/shock resistant,suitable for severe environments

 Rack Mounted Rugged Server

This series adopts special rugged design, high quality Al-alloy panel, stainless steel rack, featuring optimum vibration/shock resistance and cooling capacity, flexible configuration, optional redundant power unit, redundant processors and memory array, suitable for severe environments such as vehicle, airplane, ship and field etc, widely used in military, industrial and traffic etc.



 Specification

Electrical parameters



CPU

Intel Core 2 Duo Xeon 2.33GHz, 2



Chipset

Intel 5000V



Memory

4GB



Display

Integrated graphic card, shared 16MB video memory



Hard Disk

2 *160GB



Drive

DVD CD-RW



I/O

Aero plug jack: 1 power port, 1 keyboard/mouse port, 1 VGA port, 2 serial ports, 2 Ethernet ports,USB: 2 standard ports, 2 Aero plug jacks.



Operating system

Windows 2000 Server, Windows XP, Windows 2003 Server, Linux etc



Power

AC 110/220V @ 50-60Hz or DC 18-36V

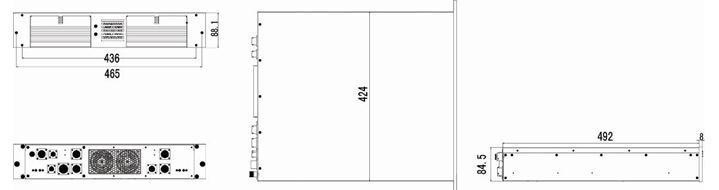

Dimension

424mm×85mm×492mm (W×H×D) (The depth excluding front panel and aero plug)



Weight

≤17Kg



Environment parameters



Operating Temp.

-20°C~+55°C



Storage Temp.

-50°C~+65°C



Humidity

95%±3%, 40°C, non-condensing



Vibration

5.0~5.5Hz, displacement (double-amplitude): 25.4mm; 1.5g(5.5~200Hz)



Shock resistance

Peak acceleration: 150m/s2, pulse width: 11ms



Expandability



2 PCI-X slots reserved

1U RACK MOUNTED RUGGED SERVER MODEL 5212-
